Lincoln Pantiles
A Bolder Take on Traditional Pantiles

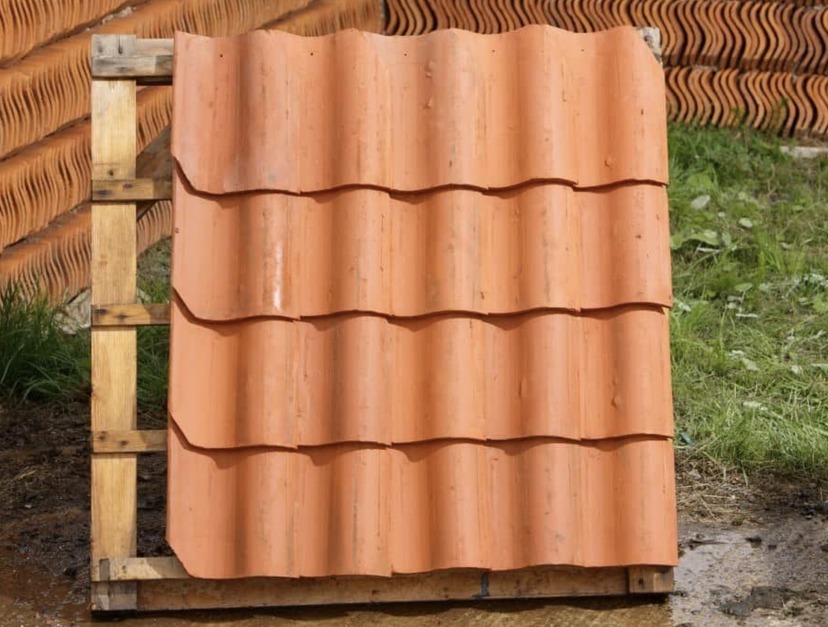

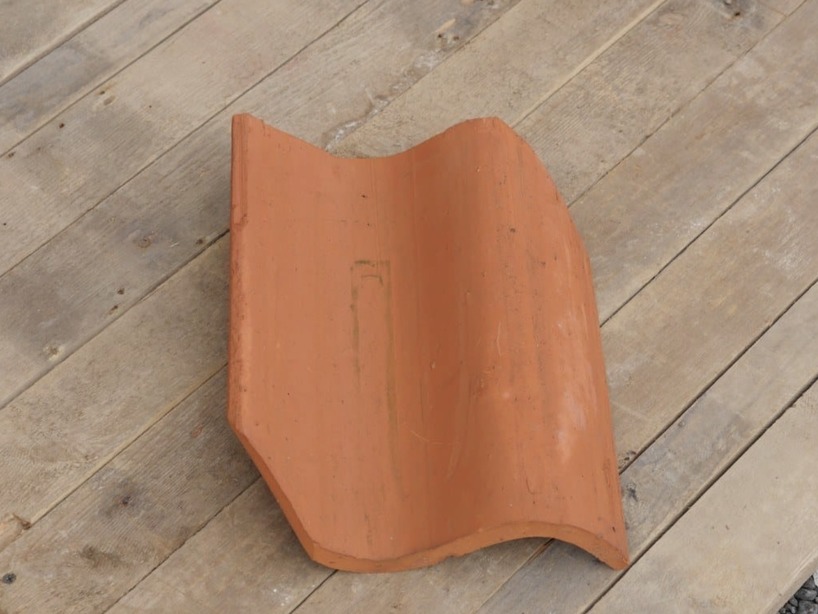

The Lincoln Clay Pantile is a distinctive handmade clay tile unique to William Blyth. Sharing the elegant curvature of our classic Barco pantile but with a deeper pan and a bolder roll, this tile brings added definition and character to any roofscape. Originally introduced in the early 1900s, it remains a testament to our enduring craftsmanship.
Crafted by hand using rich Humber alluvial clay, each Lincoln pantile is traditionally fired in our historic coal-fired kilns, resulting in natural colour variations and a robust, weathered texture that matures beautifully over time.
Whether you’re re-roofing a period building, working within a conservation area, or designing a new property with heritage in mind, our Lincoln Clay Pantiles offer timeless appeal, long-life performance, and architectural authenticity.
A Heritage Tile Made in Lincolnshire
Why Choose Our Lincoln Pantiles:
First produced over a century ago and still made by hand in Barton-upon-Humber.
Unique profile exclusive to William Blyth with greater depth and a more pronounced roll.
Ideal for restorations, listed buildings, and sensitive developments in and around Lincoln.
Available in our full range of heritage colour finishes: Natural Red, Weathered, Light Antique & Dark Earth.
Lincoln Clay Pantiles: Available in Four Timeless Finishes
To help blend seamlessly with any roofscapes, our Lincoln tiles are available in four carefully developed finishes:
Natural Red – Warm terracotta tones, ideal for traditional or contemporary builds.
Weathered – Aged finish for instant character and a timeworn appearance.
Light Antique – Subtle mid-tones, suited to soft-hued brick or stonework.
Dark Earth – Rich, deeper shades that enhance roof contrast and maturity.
Technical Information
| Item | Measurement |
|---|---|
| Material | Clay |
| Minimum Roof Pitch | 30⁰ |
| Headlap (minimum) | 75 mm |
| Batten spacing* | 257mm – 267mm |
| Size of tile* | 343mm x 280mm |
| Cover capacity | 17.5 per m² |
| Profile Depth | 60 mm |
| Hanging length | 310 mm |
| Weight per tile | 2.8 kg |
| Weight as laid | 49 kg per m² |
| Quantity per pallet | 500 |
| Weight per pallet | 1280 kg |
| Batten size | Up to 450mm rafter centres: 38mm x 25mm Up to 600mm rafter centres: 50mm x 25mm |
| Nail size / type for tiles | 38mm x 2.65 mm aluminium clout nails |
*Handmade clay tiles are subject to small variations in size because of the drying and firing shrinkage within the manufacturing process. Before deciding on the batten gauge and linear coverage, the roof tiler should inspect each batch of tiles to ensure that the correct minimum head lap and side lap are achieved. Unless otherwise stated, specification and fixing guide is based on the tiles laid at minimum head lap.
Frequently Asked Questions
What makes Lincoln Clay Pantiles different from Barco Pantiles?
Lincoln Pantiles have a deeper pan and more pronounced roll, which gives them extra definition and shadowing on the roof. They’re a bold alternative to the softer curves of our Barco tiles.
Are Lincoln Pantiles suitable for listed buildings?
Yes. Their handmade finish, natural tones, and historical lineage make them ideal for listed properties and conservation projects, especially throughout Lincolnshire and the East of England.
Can I match Lincoln Pantiles to existing roof tiles?
Absolutely. Our heritage colours and bespoke tile matching service help ensure continuity across restoration and extension work.
Are Lincoln Pantiles handmade?
Yes. Lincoln Pantiles are handmade using traditional methods, giving each tile natural variation in tone, texture and finish. This helps create a roof with character and individuality, while supporting the heritage appearance often required for listed buildings and conservation-led projects.
What colours are Lincoln Pantiles available in?
Lincoln Pantiles are available in William Blyth’s traditional heritage colours (Natural Red, Weathered, Light Antique & Dark Earth), helping them sit naturally within historic, rural and architectural settings. Colour choice can also support tile matching, restoration work and projects where the roof needs to complement surrounding materials.
Can Lincoln Pantiles be used on new build homes?
Yes. While Lincoln Pantiles are often chosen for restoration and conservation work, they can also be used on new build homes where a traditional roofscape is desired. Their handmade clay finish brings warmth, texture and long-life character to new properties.
Why Choose William Blyth?
As the only clay tile manufacturer in the UK still using traditional methods and historic kilns, William Blyth offers unmatched authenticity. Our Lincoln Pantiles are a rare combination of craft, character, and technical reliability—trusted by architects, conservation officers, and homeowners across the UK.
Get in touch with our team to discuss your project or request a free roof tile sample.
