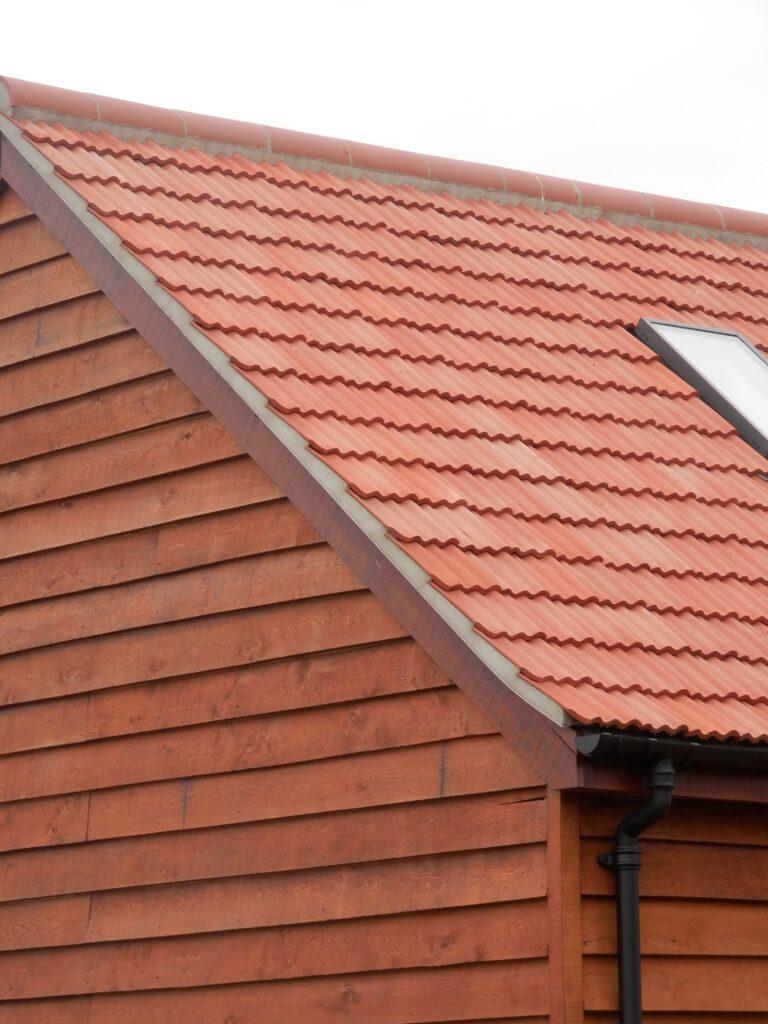

Corrugated Tiles
A Heritage Profile, Made by Hand
At William Blyth, we are proud to be the only manufacturer in the UK still producing clay corrugated roof tiles—a design steeped in British roofing heritage.
Recognised for their distinctive three-roll profile, these tiles require expert craftsmanship and careful handling, making them a true testament to traditional techniques.
Our corrugated roof tiles are handmade using Humber’s rich alluvial clay and fired in our traditional coal-fired kilns. The result is a tile with character, durability, and subtle natural colour variation—ideal for heritage and conservation projects seeking a historically sensitive finish.
Trusted for Conservation & Character Projects
With their undulating triple roll, corrugated clay roof tiles offer a softer, heritage-led appearance than modern alternatives. Their unique shape has long been favoured for:
Conservation areas and listed properties
Period home restorations
Architectural projects where detail and character matter
Each tile is crafted using time-honoured methods passed down through generations, ensuring authenticity and longevity in every batch.
Available in Four Timeless Finishes
To help blend seamlessly with traditional or weathered roofscapes, our corrugated tiles are available in four carefully developed finishes:
Natural Red – Warm terracotta tones, ideal for traditional or contemporary builds.
Weathered – Aged finish for instant character and a timeworn appearance.
Light Antique – Subtle mid-tones, suited to soft-hued brick or stonework.
Dark Earth – Rich, deeper shades that enhance roof contrast and maturity.
Technical Information
| Item | Measurement |
|---|---|
| Minimum Roof Pitch | 30⁰ |
| Size of Tile | 343mm x 241mm |
| Batten Spacing | 257mm – 267mm |
| Cover Capacity per m² | 17.5 |
| Weight per Tile (kg) | 2.2 |
| Weight per Cover (kg) | 35 |
| Quantity per Pallet | 540 |
| Weight per Pallet (kg) | 1,200 |
*Handmade clay tiles are subject to small variations in size because of the drying and firing shrinkage within the manufacturing process. Before deciding on the batten gauge and linear coverage, the roof tiler should inspect each batch of tiles to ensure that the correct minimum head lap and side lap are achieved. Unless otherwise stated, specification and fixing guide is based on the tiles laid at minimum head lap. Tiles should be drawn from three or more packs concurrently to ensure consistency of blend.
Why Choose William Blyth Corrugated Tiles?
The only UK producer of this historic profile
Handmade using natural Humber clay
Fired in traditional down-draught kilns for rich colour variation
Ideal for heritage roofing and conservation projects
Trusted by architects, conservation officers, and self-builders
Frequently Asked Questions
Are corrugated tiles suitable for use on listed or historic buildings?
Yes, absolutely. Their distinctive triple roll and handmade appearance make them a popular choice for conservation-led projects, restorations, and buildings with historic importance. Our corrugated tiles are regularly specified by architects and conservation officers for this reason.
What colours are available for your corrugated tiles?
Our corrugated roof tiles are available in four heritage-led finishes: Natural Red, Weathered, Light Antique, and Dark Earth. Each colour is achieved naturally through the firing process, giving a rich and authentic patina that matures beautifully over time.
What roof pitch is required for installing corrugated tiles?
The minimum recommended roof pitch is 30°. We also advise that batten spacing and headlap are determined based on a physical inspection of the tile batch due to natural handmade variations.
Can I request a sample before ordering?
Yes, we offer free roof tile samples so you can assess the colour, texture, and quality before committing. Simply visit our sample request page or get in touch with us directly.
Get in Touch
To discuss your project or request corrugated clay roof tile samples, contact our team today. We welcome enquiries from conservation officers, roofers, architects, and private homeowners seeking a roof with true British character.
